Welly Diecast — Find a Diecast Model for a Vehicle

Purpose

Given a user's vehicle (year, make, model — or any subset), search Welly Die Casting Factory's product catalog at wellydiecast.com and return matching diecast models with their item number, model name, scale, photo URL, and shareable canonical URL. Read-only; the site has no cart, no checkout, no auth — it is the manufacturer's reference catalog, not a store.

When to Use

• A collector wants to know if Welly produces a diecast of their car (e.g. "do they make a 1969 Mustang?").
• An agent assembling shopping lists across diecast manufacturers — Welly is the catalog of record for Item Numbers like 12516, 22485NS, 43696S3 that resellers (eBay, Amazon, hobby shops) list under.
• Cross-referencing a user-supplied Item No. (printed on the box) to the canonical product record (name, scale, photo).
• Bulk enumeration of all diecast models in a given scale (e.g. "all 1:18 Fords").

Workflow

wellydiecast.com is a server-rendered PHP catalog behind Cloudflare with no anti-bot, no auth, no cookies, no JS rendering required for the result list. A plain HTTP GET with a generic User-Agent returns the full result HTML (verified 2026-05-22: browse cloud fetch returns 200 OK with all <div class="col" pid="…"> blocks intact, no Cloudflare challenge). The site uses jQuery + AJAX only to inflate the product-detail panel inline; the underlying detail/spec endpoints are also plain POST forms. Prefer fetch over scripted browsing — the browser path costs ~100× more turns and adds no information.

1. Parse the vehicle into search axes

From the user's vehicle, pick the most-specific axis available, in this priority order:

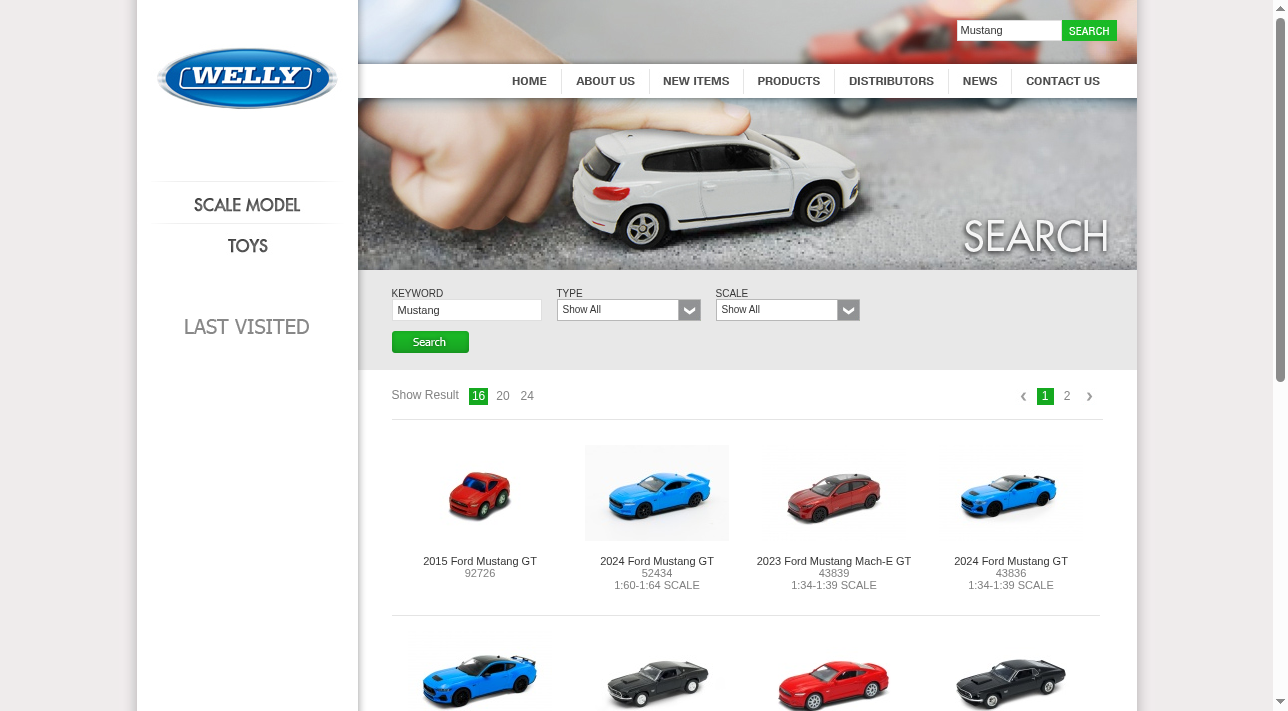

Recommendation: lead with keyword. The keyword field does a substring match against both the product name and the item number, so keyword=Mustang returns every Mustang regardless of year or scale; keyword=12516 returns the single product with that item number. brand= works but the brand enum is messy (see Gotchas) and many models from the same make are not consistently tagged.

2. Issue the search

URL="https://www.wellydiecast.com/product.php?keyword=$(python3 -c 'import urllib.parse,sys;print(urllib.parse.quote(sys.argv[1]))' "$VEHICLE_QUERY")&mode=search"
browse cloud fetch "$URL" --output /tmp/results.html

For multi-page results (<a class="next"> is present and not .nolink), iterate &page=N (starts at 1, ~20 results per page):

for N in 1 2 3 4 5; do
  browse cloud fetch "${URL}&page=${N}" --output "/tmp/results.p${N}.html"
  grep -q 'class="next nolink"' "/tmp/results.p${N}.html" && break
done

3. Parse result blocks with a regex per <div class="col" pid="…">

Each catalog tile is one <div class="col" pid="N">…</div> containing:

Empty-slot tiles <div class="col empty"></div> exist to pad rows of 4 — skip them.

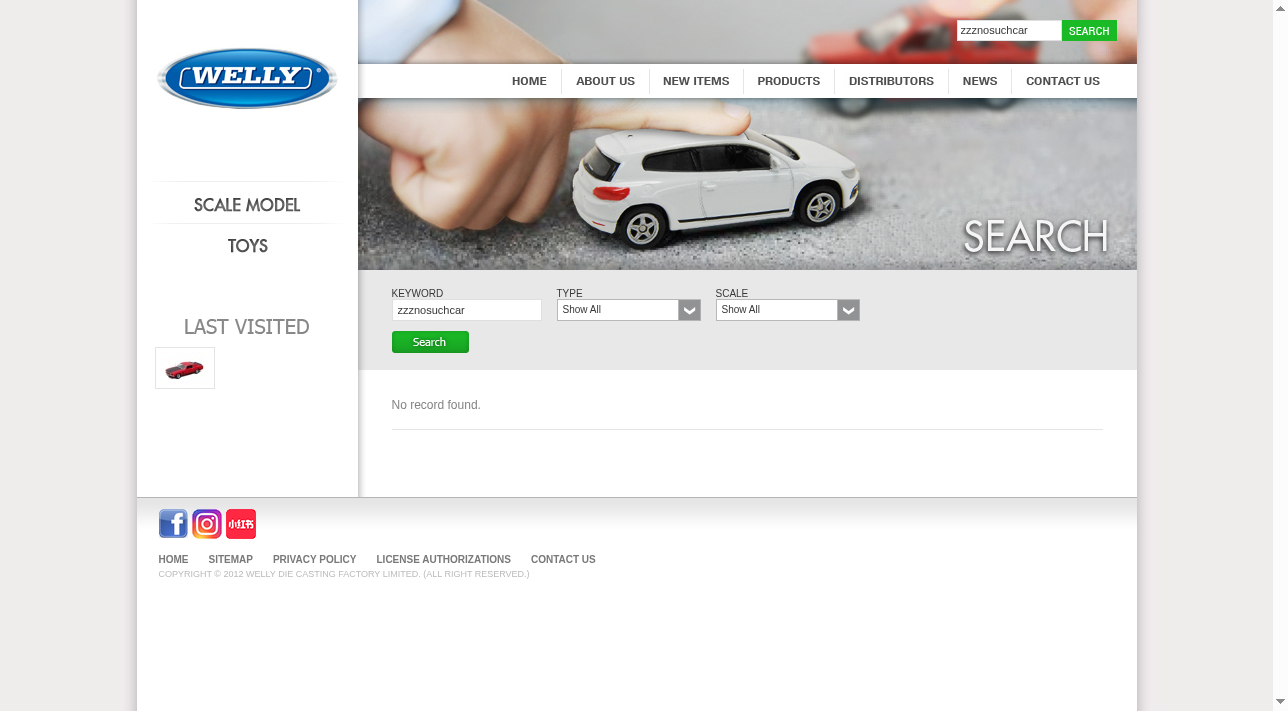

Zero-results sentinel: when the search has no matches, the body of .product_list_container contains <div class="text">No record found.</div> and no pid="…" blocks. Return { "matches": [], "no_results": true }.

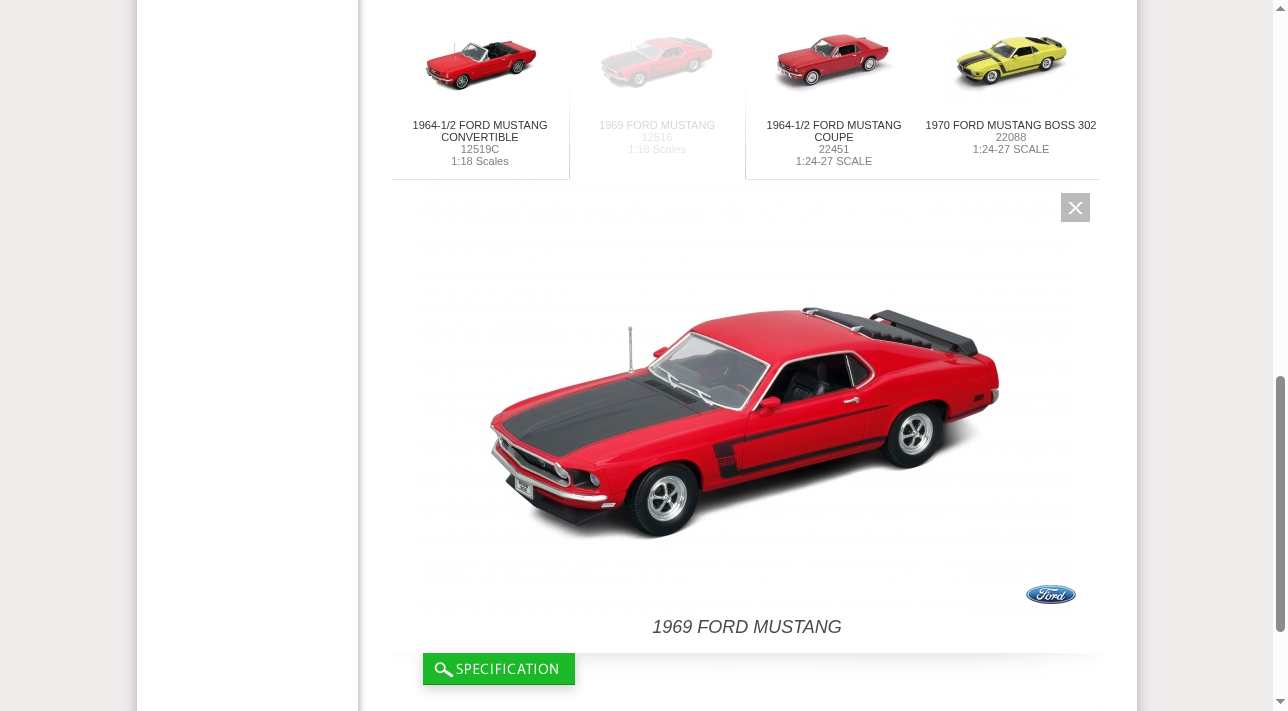

4. (Optional) Enrich each match with the detail-panel data

The result tile gives you everything most users need (name, item no., scale, photo). For high-resolution photo and a confirmed "Category" string, POST to the AJAX endpoints used by the inline detail panel:

# High-res photo + brand logo
curl -s -X POST -d "pid=$PID" -H "Content-Type: application/x-www-form-urlencoded" \
  https://www.wellydiecast.com/product_detail.php
# Item No., Category (scale group), Model — same data, more reliably formatted
curl -s -X POST -d "pid=$PID" -H "Content-Type: application/x-www-form-urlencoded" \
  https://www.wellydiecast.com/product_spec.php

(In the browse.sh sandbox, curl may not have outbound DNS — substitute browse eval with fetch('/product_detail.php', { method:'POST', headers:{'Content-Type':'application/x-www-form-urlencoded'}, body:'pid='+pid }) from within an open page on wellydiecast.com. Verified 2026-05-22 in iter-1: both endpoints return 200 with the documented HTML fragments.)

Browser fallback

If browse cloud fetch ever returns a Cloudflare challenge page (not observed in 2026-05-22 testing across 6 result pages and 2 AJAX endpoints), fall back to:

sid=$(browse cloud sessions create --keep-alive --proxies --verified | node -e "let s='';process.stdin.on('data',c=>s+=c).on('end',()=>process.stdout.write(JSON.parse(s).id))")
browse open "https://www.wellydiecast.com/product.php?keyword=Mustang&mode=search" --remote -s "$sid"
browse wait load --remote -s "$sid"
HTML=$(browse get html body --remote -s "$sid")
# parse $HTML with the same regexes as step 3
browse cloud sessions update "$sid" --status REQUEST_RELEASE

Do not rely on browse snapshot for parsing — the accessibility tree collapses the catalog tiles into long flat StaticText runs and drops the pid attribute. Use browse get html and the regex set above.

Site-Specific Gotchas

• Welly is a manufacturer, not a store. Product pages have no price, no stock status, no buy button. The skill returns model identifiers (item_no, name, scale, pid) — the consumer of this skill then takes those into eBay/Amazon/hobby-shop searches to actually buy one. Don't fabricate prices or availability; they do not exist on this site.
• The brand= enum is dirty. The same make appears under multiple variants because of historical data-entry drift. Observed duplicates in /product.php brand list (2026-05-22): PORSCHE ↔ Porche (typo), FIAT ↔ FAIT+ (typo) ↔ +Fiat, CHEVROLET ↔ +CHEVROLET, KAWASAKI ↔ Kawasak, MINI ↔ MINI+COOPER ↔ Mini+Cooper1, Aston Martin ↔ (no UPPERCASE variant), Mazda (mixed-case only). When the user supplies a brand, the safer query is keyword=<BRAND> not brand=<BRAND> — keyword substring-matches against the model-name string which contains "FORD MUSTANG", "NISSAN SILVIA" etc, capturing all variants in one shot.

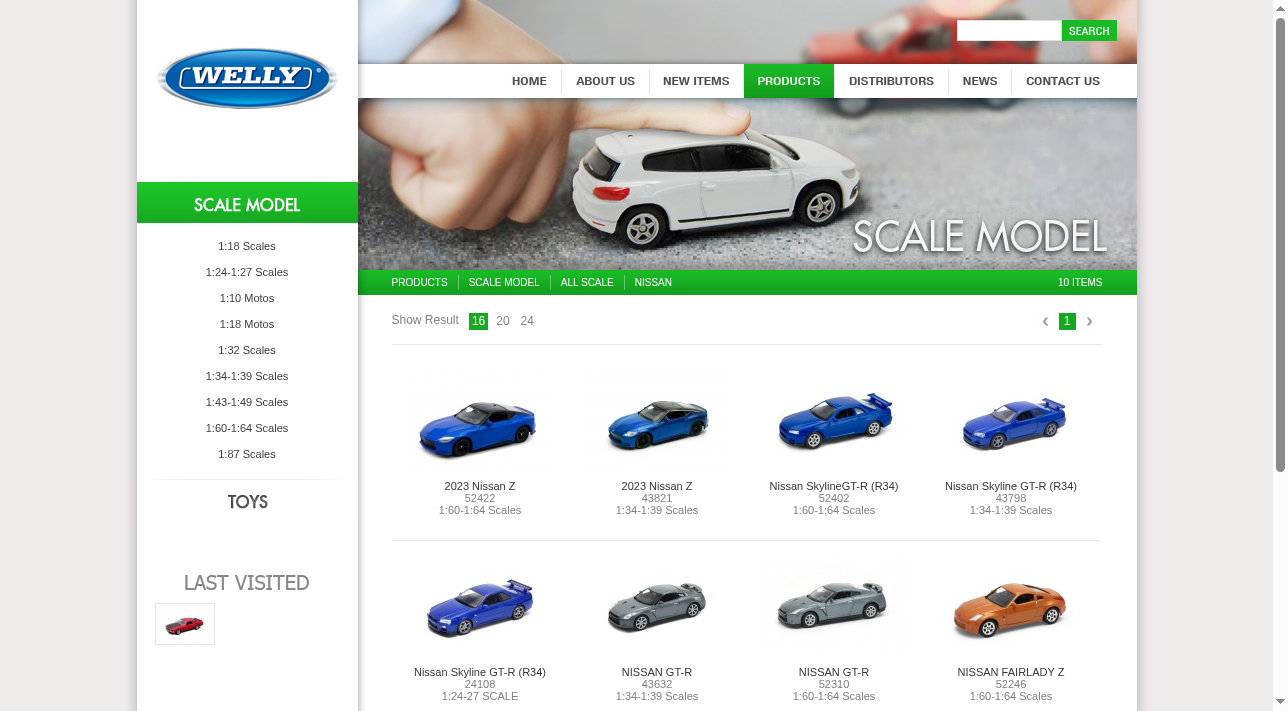

• brand= is case-sensitive. brand=NISSAN returns results; brand=nissan returns zero. Map user input to the catalog's UPPERCASE canonical form (or fall back to keyword, see above).

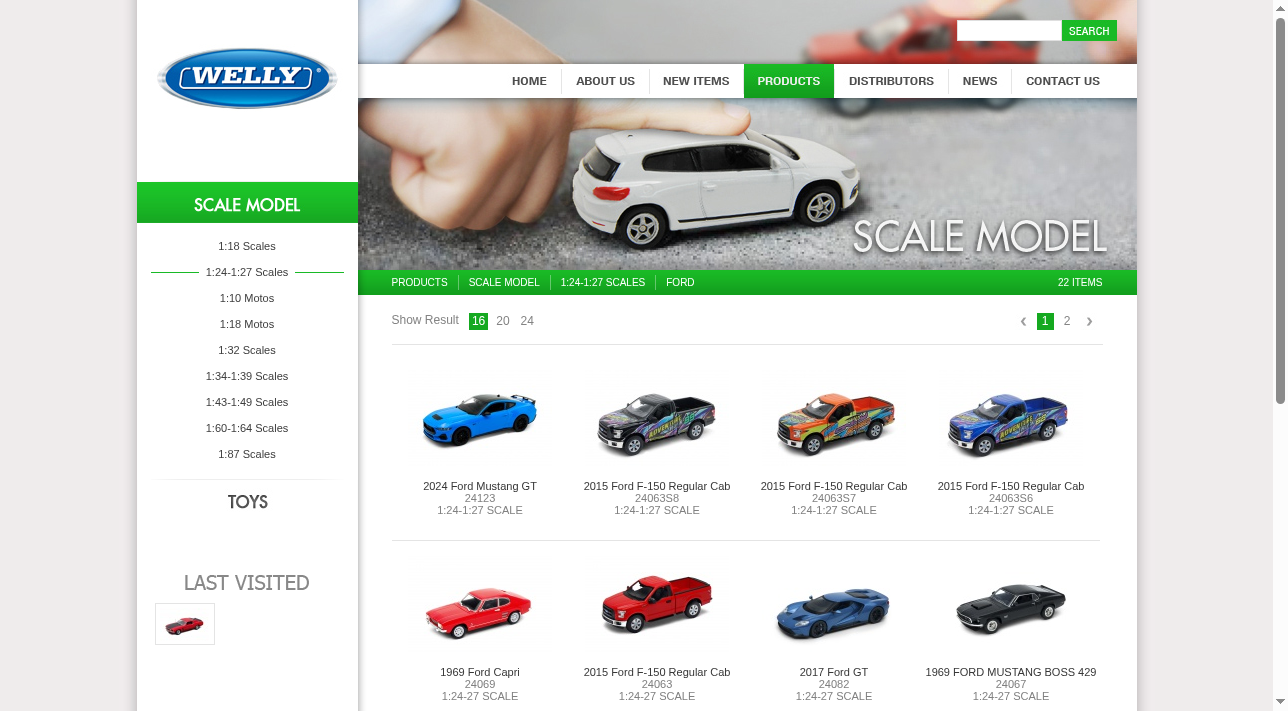

• Scale is free-text in the result tile. Strings observed: 1:18 Scales, 1:24-27 SCALE (note: 27 not 1:27 — inconsistent with the menu's 1:24-1:27 Scales), 1:32 Scales, 1:34-1:39 Scales, 1:43-1:49 Scales, 1:60-1:64 Scales, 1:87 Scales, 1:10 Motos, 1:18 Motos. Match loosely with a regex like 1:(\d+)(?:-1?:?(\d+))? rather than equality.
• Categories (cid) and scales (sid) are stable enums:
  • cid=1 = SCALE MODEL (the diecast-collector catalog)
  • cid=2 = TOYS (BELOW… playsets, novelty)
  • Under cid=1: sid=1→1:18, sid=2→1:24-1:27, sid=3→1:18 Motos, sid=4→1:32, sid=5→1:34-1:39, sid=6→1:43-1:49, sid=7→1:60-1:64, sid=8→1:87, sid=18→1:10 Motos.
• Pagination is &page=N, 1-indexed, ~20 per page. Detect end-of-results by <a class="next nolink"></a> (the nolink class on the next-page anchor means there is no next page). The first page does not need &page=1 but accepts it.
• No canonical "product detail page" exists. Welly's catalog UI expands the detail inline via AJAX (product.init() JS). The user-facing canonical shareable URL is https://www.wellydiecast.com/product.php?keyword=<itemno>&mode=search#pid=<pid> (which auto-opens the detail panel on load) or https://www.wellydiecast.com/share.php?pid=<pid> (their generated short URL — verified via the QR-code generator in product_spec.php). The hash-fragment URL is friendlier for humans; the share URL is what their own QR encodes.
• #pid=N only works on a result page that includes that pid. Linking to product.php?keyword=Mustang&mode=search#pid=80 opens the detail panel because pid 80 is in the Mustang result set. Linking to product.php#pid=80 (no search) opens the catalog index without the panel. Always link a detail through its own search context.
• Item numbers have alphanumeric suffixes that matter. 12519H, 12519C, 22485NS, 22485S, 43696S3 — the trailing letters denote body style or variant (H=hardtop, C=convertible, NS=non-stock, S3=series 3 etc.). Don't strip them; they distinguish otherwise-identical-named models.
• Photo URLs need the host prefix. Result HTML carries src="upload/product/middle/2017-01-12/690237635467.jpg" (relative). Prefix https://www.wellydiecast.com/ to make them absolute. The middle/ segment is the medium-resolution catalog tile; large/ is the detail-panel high-res; tn/ is the new-items thumbnail.
• Cloudflare passes a generic UA. No --proxies or --verified needed for browse cloud fetch. The site sets a PHPSESSID cookie but never validates it — discard it. The Cloudflare beacon (cdn-cgi/challenge-platform/scripts/jsd/main.js) is loaded but not interactively enforced on our requests.
• product.php with no params lists all brand filter links in the left nav. That page is a useful one-shot to harvest the full brand enum if needed — but expect ~85 entries including the duplicates listed above.

Expected Output

Three distinct outcome shapes:

// Matches found
{
  "query": { "vehicle": "1969 Ford Mustang", "axis": "keyword", "url": "https://www.wellydiecast.com/product.php?keyword=Mustang&mode=search" },
  "no_results": false,
  "total_pages_scanned": 2,
  "matches": [
    {
      "pid": 80,
      "item_no": "12516",
      "name": "1969 FORD MUSTANG",
      "scale": "1:18 Scales",
      "photo_url": "https://www.wellydiecast.com/upload/product/middle/2017-01-12/224922330185.jpg",
      "share_url": "https://www.wellydiecast.com/share.php?pid=80",
      "detail_link": "https://www.wellydiecast.com/product.php?keyword=12516&mode=search#pid=80"
    },
    {
      "pid": 76,
      "item_no": "12519H",
      "name": "1964-1/2 FORD MUSTANG COUPE",
      "scale": "1:18 Scales",
      "photo_url": "https://www.wellydiecast.com/upload/product/middle/2017-01-12/671176041761.jpg",
      "share_url": "https://www.wellydiecast.com/share.php?pid=76",
      "detail_link": "https://www.wellydiecast.com/product.php?keyword=12519H&mode=search#pid=76"
    }
  ]
}

// No results
{
  "query": { "vehicle": "Toyota Prius", "axis": "keyword", "url": "https://www.wellydiecast.com/product.php?keyword=Prius&mode=search" },
  "no_results": true,
  "matches": [],
  "suggestion": "Welly's catalog does not include this model. Try a broader query (e.g. brand only) or check that the year/trim is correct."
}

// Ambiguous brand — multiple enum variants for the same make
{
  "query": { "vehicle": "any Porsche", "axis": "brand", "url": "https://www.wellydiecast.com/product.php?brand=PORSCHE" },
  "no_results": false,
  "brand_variants_detected": ["PORSCHE", "Porche"],
  "note": "Brand enum contains duplicate variants; combined results across all variants returned below.",
  "matches": [
    { "pid": 1234, "item_no": "24081", "name": "PORSCHE 911 CARRERA S", "scale": "1:24-27 SCALE", "photo_url": "https://www.wellydiecast.com/upload/product/middle/…", "share_url": "https://www.wellydiecast.com/share.php?pid=1234", "detail_link": "https://www.wellydiecast.com/product.php?keyword=24081&mode=search#pid=1234" }
  ]
}
