Generate Payment Link (GoPay.kg)

Purpose

Create a hosted payment link on GoPay (Kyrgyzstan, EMVCO/ELQR-based gateway built on top of the Kyrgyzstan Interbank QR system) that a merchant can send to a buyer via WhatsApp / SMS / email. The buyer opens the link, pays through any of 20+ partner banking apps (MBank, MegaPay, Optima24, O!Деньги, KICB, Bakai, etc.), and the merchant receives a webhook with the result. This skill is read/write — it creates a real payment record server-side — but does not move funds itself (funds only move when the buyer completes the payment in their bank app). The skill returns the checkout_url (the payment link), the QR-code image URL, the raw EMVCO QR data, and per-app deep links.

When to Use

  • Merchant wants a short URL to bill a single customer (invoice, custom order, food delivery, freelance work).
  • Webshop / SaaS checkout flow needs a one-off payment intent with a specific order_id and amount.
  • Integrating GoPay as a payment method into an existing CRM, ERP, or storefront where you would otherwise embed Stripe/Tilopay.
  • Generating a sharable QR for in-person sale at a counter (use qr_url PNG or qr_data for your own renderer).
  • Testing an integration end-to-end (set testing_mode: true to have GoPay auto-commit the payment without a real bank transaction).

Do not use this skill if the customer needs a permanent QR (e.g. for a printed sticker at a cashier) — that is a separate endpoint (POST /v1/static-qr/), not covered here.

Workflow

Optimal path: direct API call to POST https://api.gopay.kg/v1/payments. GoPay is an API-first product — the "create payment" form in the merchant dashboard at https://merchant.gopay.kg is itself just a thin client over this endpoint. Browser-driving the dashboard to fill that form would (a) require persistent merchant credentials in a headless browser session, (b) be slower and less reliable than a signed HTTP call, and (c) still return the exact same checkout_url you get from the API. There is no faster or more honest path than the API.

Step 1 — Obtain merchant credentials (one-time, manual; cannot be automated)

You need an api_key + secret_key pair, issued in the merchant dashboard. There is no programmatic onboarding — a merchant has to:

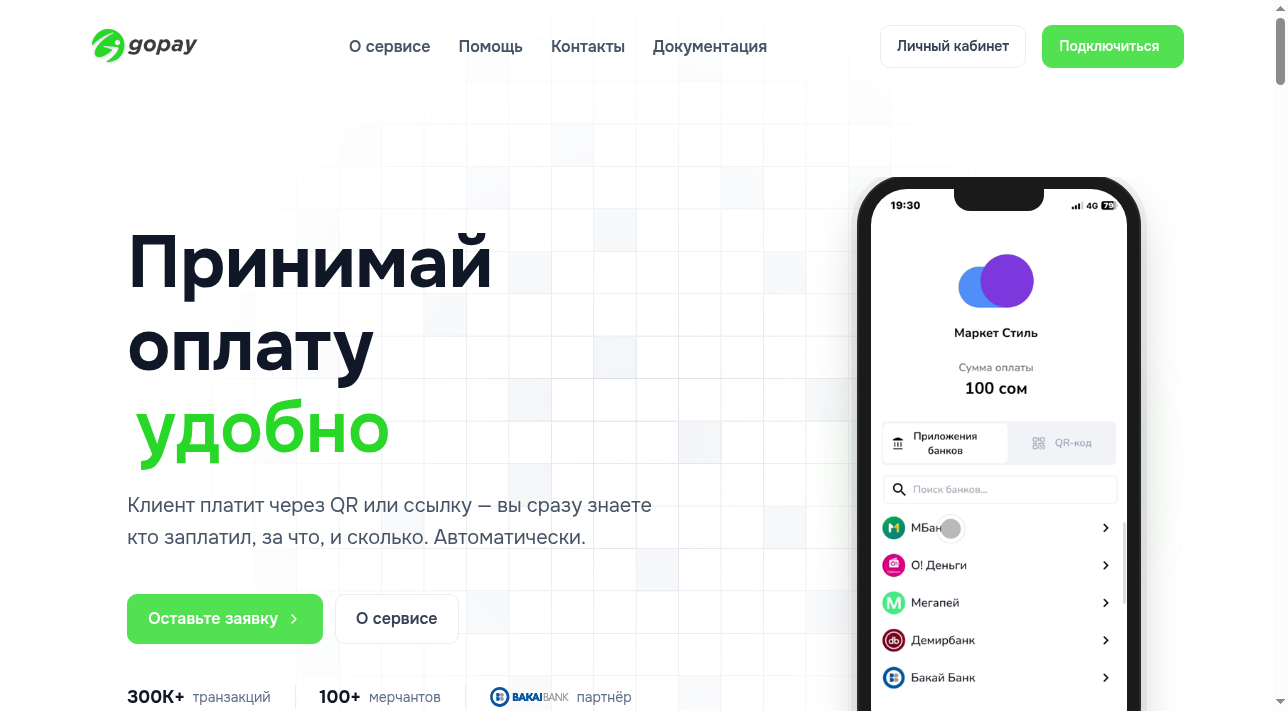

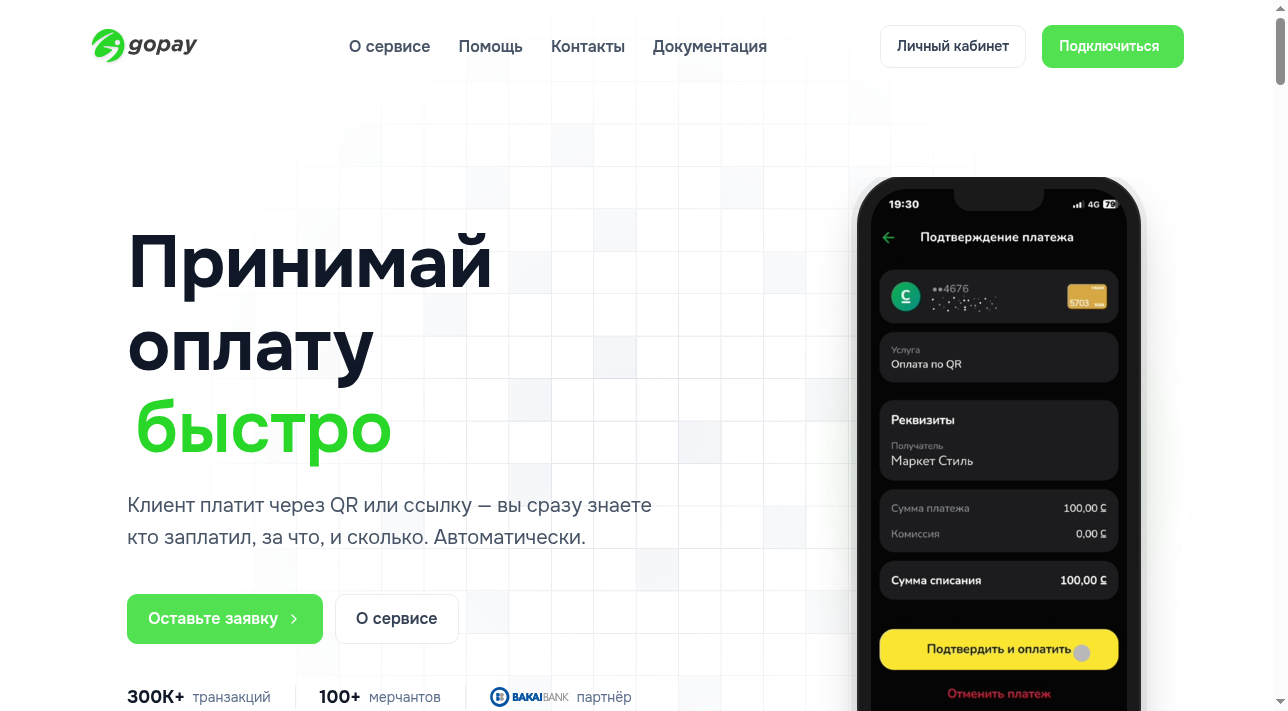

  1. Submit the "Оставьте заявку" lead form at https://www.gopay.kg/ (name, phone, business).
  2. Sign a contract with «ОсОО Го Пей» and Bakai Bank (the acquiring partner).
  3. Receive login credentials for https://merchant.gopay.kg.
  4. Open Developer → API Keys in the dashboard and copy the GoPay-Api-Key (public) and GoPay-Secret-Key (private, server-side only — never ship to a client).
  5. (Recommended) On the same screen, open Developer → Webhooks and configure an events_url endpoint so the merchant's backend receives payment.committed / payment.failed notifications. The legacy callback_url mechanism still works but is documented as deprecated.

Store the secret key like any other server credential (env var, secret manager). Treat the API key as semi-public — it is logged in support tickets.

Step 2 — Sign and POST the request

The signing scheme is HMAC-SHA512 in upper-case hex, computed over a three-line payload:

payload = nonce + "\n" + request_body_json + "\n"
signature = HMAC-SHA512(payload, secret_key).hexdigest().upper()

Three headers are required on every request:

HeaderValue
GoPay-Api-Keythe public key from the dashboard
GoPay-Noncea fresh random string per request, ≤ 32 chars (UUID-hex is fine)
GoPay-Signaturethe upper-case hex HMAC-SHA512 digest from above

The body must be Content-Type: application/json. The exact JSON string you sign must be the exact bytes you send — do not pretty-print one and serialize another, or the signature will not match (server error code 4001).

Python reference implementation (copy verbatim):

import hmac, hashlib, json, uuid, requests

API_KEY    = "..."   # from merchant dashboard
SECRET_KEY = "..."   # from merchant dashboard

data    = {
    "order_id": "ORDER-20260521-001",       # ≤ 32 chars, unique per merchant
    "amount": "1500.00",                     # decimal string, 0.01 – 999999.99
    "description": "Order #001",             # optional, ≤ 255 chars
    "lifetime": 3600,                        # optional, seconds; 300–86400; default 3600
    "callback_url": "https://example.com/gopay/webhook",  # optional, HTTPS only
    "success_url":  "https://example.com/paid",           # optional
    "failure_url":  "https://example.com/failed",         # optional
    # "testing_mode": True,                  # optional; auto-commits without real bank op
}
nonce    = uuid.uuid4().hex                  # 32 hex chars, OK
data_str = json.dumps(data, ensure_ascii=False, separators=(",", ":"))
payload  = nonce + "\n" + data_str + "\n"
signature = hmac.new(
    SECRET_KEY.encode("utf-8"),
    msg=payload.encode("utf-8"),
    digestmod=hashlib.sha512,
).hexdigest().upper()

r = requests.post(
    "https://api.gopay.kg/v1/payments",
    headers={
        "Content-Type":    "application/json",
        "GoPay-Api-Key":   API_KEY,
        "GoPay-Nonce":     nonce,
        "GoPay-Signature": signature,
    },
    data=data_str.encode("utf-8"),           # send the exact bytes that were signed
    timeout=30,
)
result = r.json()
assert result["status"] == "OK", result
payment_link = result["data"]["checkout_url"]    # ← THIS is the payment link

cURL equivalent (for ad-hoc / shell):

API_KEY="..."
SECRET_KEY="..."
NONCE=$(openssl rand -hex 16)
DATA='{"order_id":"ORDER-20260521-001","amount":"1500.00"}'
PAYLOAD=$(printf '%s\n%s\n' "$NONCE" "$DATA")
SIGNATURE=$(printf '%s' "$PAYLOAD" \
  | openssl dgst -sha512 -hmac "$SECRET_KEY" \
  | awk '{print toupper($2)}')

curl -sS -X POST https://api.gopay.kg/v1/payments \
  -H 'Content-Type: application/json' \
  -H "GoPay-Api-Key: $API_KEY" \
  -H "GoPay-Nonce: $NONCE" \
  -H "GoPay-Signature: $SIGNATURE" \
  -d "$DATA"

Step 3 — Hand the checkout_url to the buyer

The 200-OK response (HTTP status is always 200 — read the body status field) contains a data object with everything you need:

  • data.checkout_url — the hosted payment page (https://pay.gopay.kg/p/<payment_id>/). This is the payment link. Send it via WhatsApp / SMS / email, or 302-redirect the buyer to it from your own checkout.
  • data.qr_url — PNG image of the EMVCO QR code (render in an <img> if you want a desktop / in-store flow).
  • data.qr_data — raw EMVCO payload (https://pay.payqr.kg#00020101...) for self-rendering with qrcode libs.
  • data.app_links — a map of {bank_code: deeplink} (e.g. {"mbank": "mbank://elqr?data=..."}). Use these on mobile to launch the buyer directly into a specific bank app, bypassing the QR scan step.
  • data.payment_id — GoPay's ID; persist it alongside your order_id for later status queries.
  • data.expires_at — when the link goes stale (CREATED → EXPIRED).

Step 4 — Confirm settlement (poll or webhook)

The buyer pays asynchronously. Two ways to learn the outcome:

  • Webhook (recommended). Configure events_url in the dashboard; GoPay POSTs a signed payment.committed / payment.failed event. Verify the gopay-signature header using the same HMAC-SHA512 scheme with your webhook secret (separate from the API secret, also in the dashboard).
  • Polling fallback. POST https://api.gopay.kg/v1/payments/query with {"payment_id": "..."} or {"order_id": "..."} returns the current status (CREATED / COMMITTED / FAILED / EXPIRED). Same HMAC signing.

Browser fallback

Only useful for one-off manual generation by a human operator who is already logged in (e.g. a sales rep creating an invoice on the fly):

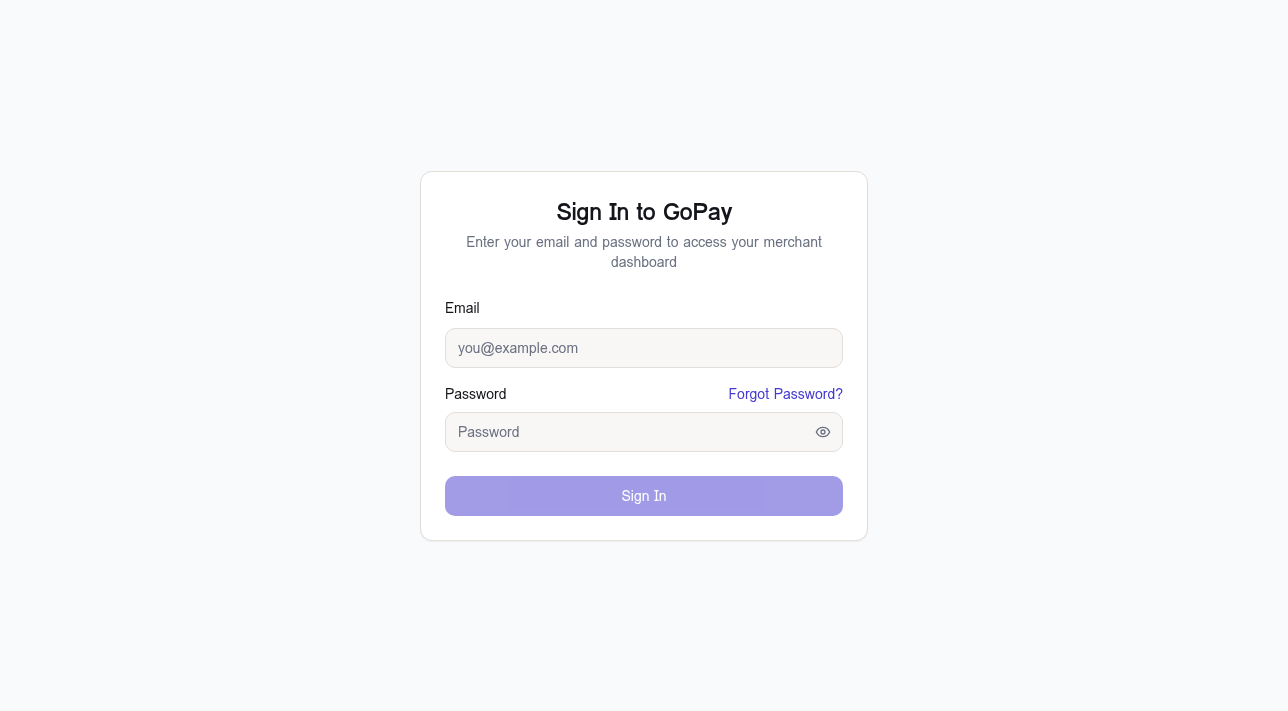

  1. Open https://merchant.gopay.kg/ and sign in (email + password; "Forgot Password" link is present).
  2. Navigate to Payments → New Payment (Russian: «Создать платёж»).
  3. Fill the form: Сумма (amount in KGS), Описание (description), Время жизни (lifetime — radio with three presets: 15 min / 1 hour / 24 h).
  4. Click Создать платёж. The dashboard returns the same checkout_url and a QR preview — copy it from the page.

This fallback is strictly worse than the API for any repeated or programmatic use: it requires real credentials in a stealth browser session, ELQR-specific captcha could be added at any time, and the dashboard UI is Russian-only with no English locale option observed on the login page (English label "Sign In to GoPay" appears, but inner pages render Russian).

Site-Specific Gotchas

  • No anti-bot wall on the API itself. api.gopay.kg is served behind Vercel; there is no Cloudflare/Akamai challenge, no rate-limit gate observed for well-signed requests. The marketing site (www.gopay.kg, Next.js on Vercel) and docs portal (doc.gopay.kg, Scalar + gunicorn) are also bare-friendly. Stealth / residential proxies are not required for any HTTP call in this skill.
  • pay.gopay.kg is geo-restricted / ELQR-fenced. Fetching https://pay.gopay.kg/ from a US datacenter IP returns ERR_TUNNEL_CONNECTION_FAILED even via Browserbase residential proxies, and GET /p/<random_id>/ returned 500 Internal Server Error. Buyer-side rendering happens inside Kyrgyzstan banking apps that fetch over local mobile networks, so an offshore agent cannot meaningfully verify the buyer flow end-to-end. Trust the checkout_url returned by the API; do not assert HTTP 200 on a HEAD probe of it.
  • HTTP status is always 200 on the API. Even errors come back as {"status": "FAIL", "code": "4001", "error_message": "..."} with HTTP 200. Always check the body status field, never response.status_code.
  • order_id must be unique per merchant. Re-submitting the same order_id returns code: "4005" (Дублирующийся order_id). Generate a fresh ID — ORDER-{timestamp}-{nonce6} or a UUID — for every link.
  • Sign the exact bytes you send. The most common signing bug is computing the signature over a pretty-printed JSON string but sending a compacted one (or vice versa). Use a single canonical data_str variable: feed it both into the HMAC input and into the request body, byte-for-byte. Compact separators ((",", ":")) match GoPay's reference Python sample.
  • nonce ≤ 32 chars. UUID4 hex (32 chars exactly) is fine; UUID4 with hyphens (36 chars) is not. Use uuid.uuid4().hex in Python or crypto.randomBytes(16).toString('hex') in Node.
  • callback_url is deprecated — prefer events_url. The docs explicitly warn that callback_url is the legacy mechanism. New integrations should configure events_url in the dashboard (Developer → Webhooks) instead; it gets typed events (payment.committed, payment.failed, future event types), UTC Z-suffixed timestamps, a delivery journal, and a "Send test" button. The callback_url field on POST /v1/payments still works for back-compat.
  • lifetime clamps. Minimum 300 seconds (5 min), maximum 86400 (24 h), default 3600 (1 h). Values outside this range return code: "4004" (Неверный параметр запроса).
  • amount is a string, not a number. "150.00" (regex: ^-?\d{0,8}(?:\.\d{0,2})?$). Passing 150 (int) or 150.00 (float) will not validate. Range 0.01 – 999999.99.
  • testing_mode: true only fakes the bank step. A test payment still consumes an order_id and produces a real payment_id in the merchant's history. GoPay auto-transitions it CREATED → COMMITTED and fires the webhook so you can verify end-to-end plumbing. Do not use a production order_id for test runs.
  • buyer triggers fiscal receipt delivery. If you set buyer.email or buyer.phone, GoPay forwards it to ГНС (Kyrgyz tax authority) as ФФД tag 1008 and the tax service sends an electronic receipt directly to the buyer. Required by §6 of the Kyrgyz "Rules for operation of online cash registers". Omit buyer if you handle receipts yourself.
  • items is required for goods merchants under §17.3. If the merchant sells physical goods or marked goods (§17.4), you must pass a per-line items array; sum(price * quantity) must equal amount. Service / subscription merchants can omit items (the back-end receipt_builder synthesizes a single line from merchant config).

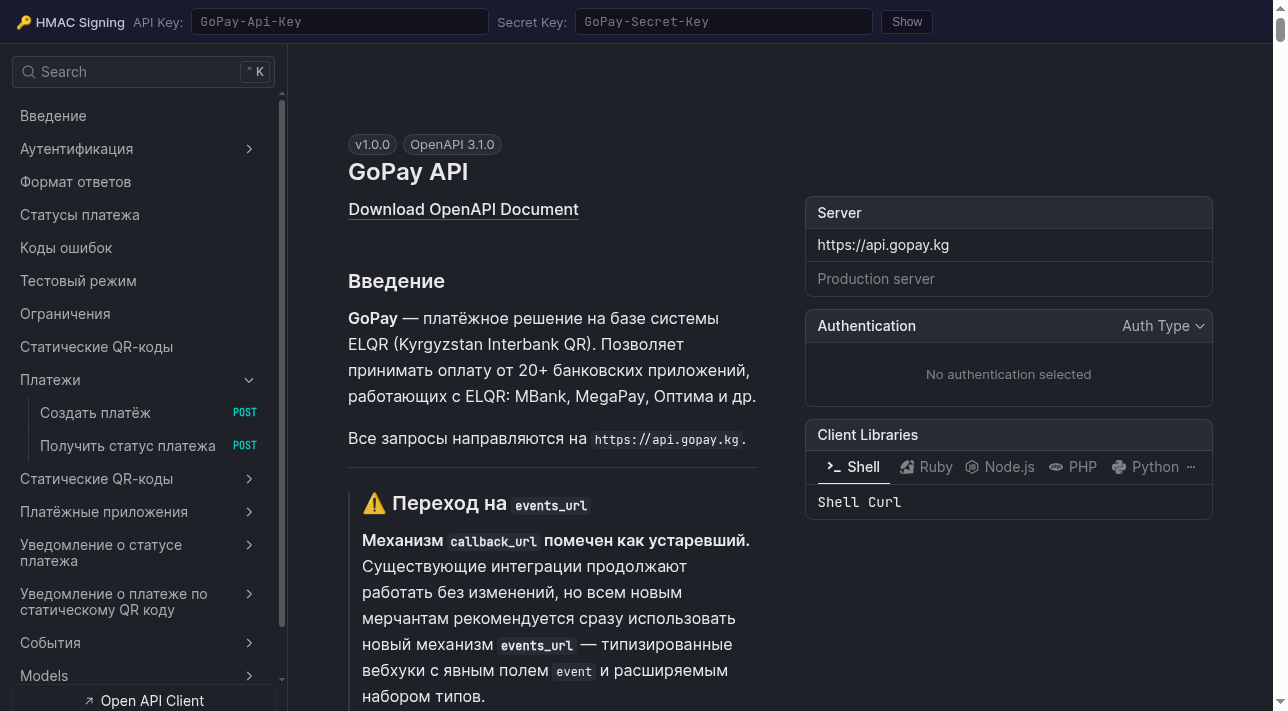

  • Documentation is on a Scalar-rendered Django page. The OpenAPI source is at https://doc.gopay.kg/v1/schema/ — it serves as base64-encoded YAML (not JSON). To parse it, fetch and base64 -d first. The interactive console at https://doc.gopay.kg/v1/ injects HMAC headers client-side using a floating "🔑 HMAC Signing" panel that stores keys in localStorage under gopay-doc-api-key and gopay-doc-secret-key — handy if you want to test endpoints in the browser without writing a script.
  • No publicly observable rate limit. The docs do not document one; behavior under burst load was not probed (would require real credentials and would consume a real merchant's quota).
  • There is no payment-link cancellation endpoint. Once created, a link can only be voided by waiting for lifetime to expire (transitions to EXPIRED). If you need to revoke a link sooner, generate a new one with a longer lifetime and re-send.

Expected Output

The skill returns the parsed data block of the successful POST /v1/payments response. Outcomes branch into one of the following shapes:

Success (status: "OK", code: "0000")

{
  "status": "OK",
  "code": "0000",
  "data": {
    "payment_id": "a1b2c3d4e5f6a1b2c3d4e5f6a1b2c3d4",
    "order_id":   "ORDER-20260521-001",
    "amount":     "1500.00",
    "status":     "CREATED",
    "description": "Order #001",
    "checkout_url": "https://pay.gopay.kg/p/a1b2c3d4e5f6a1b2c3d4e5f6a1b2c3d4/",
    "qr_url":       "https://pay.gopay.kg/p/a1b2c3d4e5f6a1b2c3d4e5f6a1b2c3d4/qr/",
    "qr_data":      "https://pay.payqr.kg#00020101...",
    "app_links": {
      "mbank":   "mbank://elqr?data=https%3A%2F%2Fpay.payqr.kg%23...",
      "megapay": "megapay://elqr?data=https%3A%2F%2Fpay.payqr.kg%23...",
      "optima":  "optima24://elqr?data=https%3A%2F%2Fpay.payqr.kg%23..."
    },
    "callback_url": "https://example.com/gopay/webhook",
    "success_url":  "https://example.com/paid",
    "failure_url":  "https://example.com/failed",
    "created_at":   "2026-05-21T16:00:00Z",
    "expires_at":   "2026-05-21T17:00:00Z",
    "committed_at": null,
    "bank_op_date": null
  }
}

Success — testing mode (testing_mode: true)

Identical shape, but the back-end immediately transitions the payment and fires the webhook. A follow-up POST /v1/payments/query will return status: "COMMITTED" with a populated committed_at.

Failure — bad signature

{ "status": "FAIL", "code": "4001", "error_message": "Invalid signature" }

Failure — missing required header

{ "status": "FAIL", "code": "4002", "error_message": "Missing required header: GoPay-Nonce" }

Failure — duplicate order_id

{ "status": "FAIL", "code": "4005", "error_message": "Duplicate order_id" }

Failure — invalid parameter (e.g. amount out of range, lifetime < 300, malformed URL)

{ "status": "FAIL", "code": "4004", "error_message": "Invalid request parameter: amount" }

Failure — server error

{ "status": "FAIL", "code": "5001", "error_message": "Internal server error" }

Branch on code: "0000" → succeed (return data.checkout_url); "4001"/"4002" → fix the request signing and retry; "4004" → validate input and surface to caller; "4005" → generate a new order_id and retry; "5001" → exponential-backoff retry up to ~3 attempts.
